Building Streaming and Cross-Environment Data Processing Pipelines with RDF-Connect

Download dependencies while we're waiting

# Clone the tutorial repository
git clone git@github.com:rdf-connect/nara-weather-forecast-kg-pipeline.git
cd nara-weather-forecast-kg-pipeline/pipeline/resources

# Start the development container
docker compose up -d

# Open a shell inside the container
docker compose exec devbox bash

# Prepare the Python environment for the processor
cd processor/
hatch env create
hatch shell


open.gent/r/iswc-rdfc-repo

Agenda

• Morning Session 1: Introduction
• • What will happen in this tutorial? 🤔 (9:00h)
  • Let's get our hands dirty already! 🛠️ (9:10h)
  • The what and why of RDF-Connect? 🎯 (10:00h)
• Coffee break ☕
• Morning Session 2: Architecture
• • RDF-Connect Architecture & Components ⚙️ (11:00h)
  • Assembling a pipeline 🔗 (11:30h)
• Lunch break 🍣
• Afternoon Session 1: Roadmap
• • Implementing a custom processor 🏗️ (13:30)
  • What is next for RDF-Connect? 🛫 (14:30h)
• Coffee break ☕
• Afternoon Session 2: Hackathon 🧑‍💻

Tutorial overview

Example pipeline: An RDF KG lifecycle

A pipeline of a knowledge graph lifecycle process, where weather data (from the Japanese meteorological API service) will be collected, transformed into RDF, enriched, validated against a SHACL shape, and published on a RDF graph store.

Tutorial resources

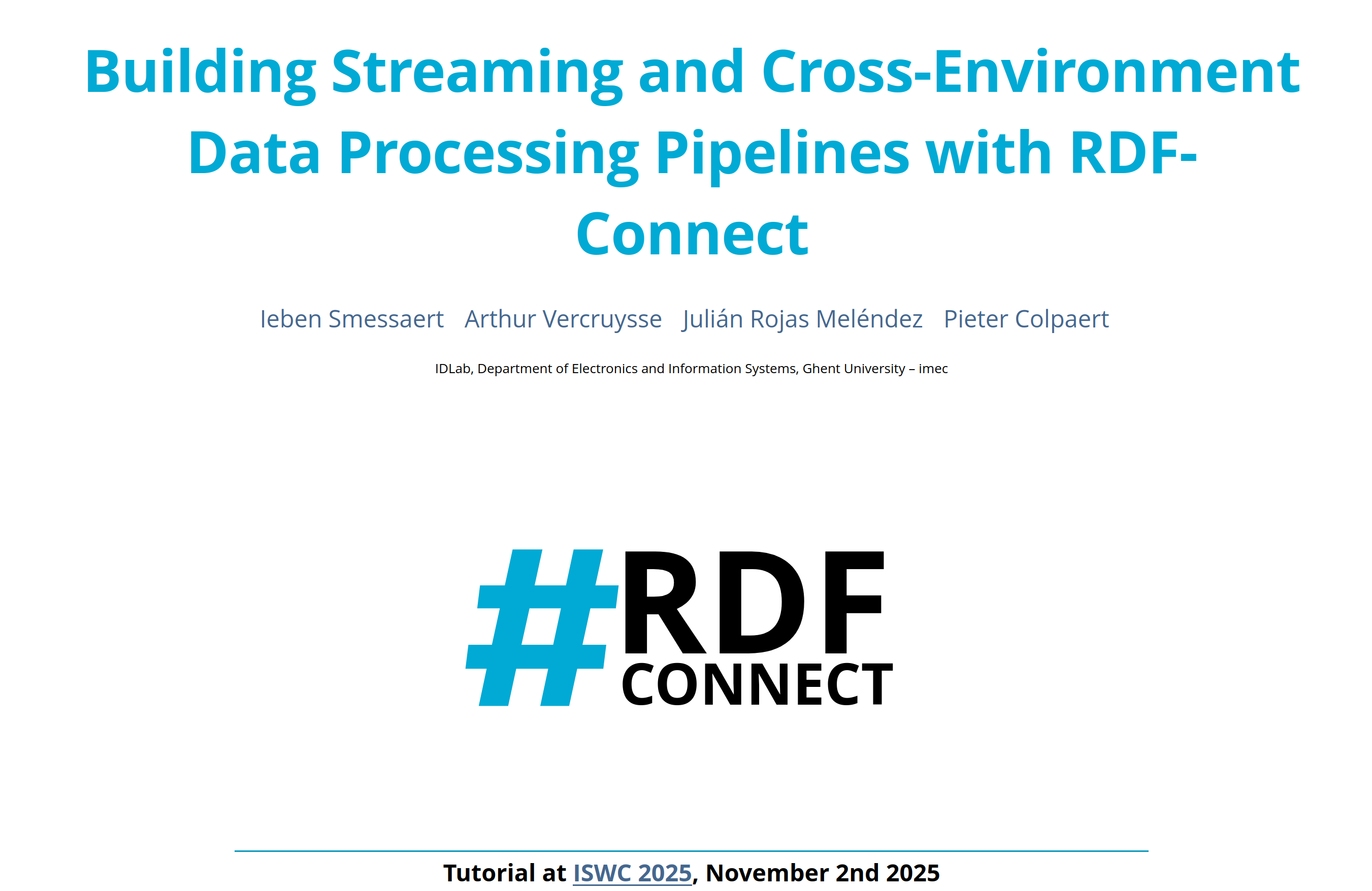

Tutorial Website

The tutorial website has a complete description and motivation for the tutorial. There you may also find all the resources you need to follow along, including these slides.

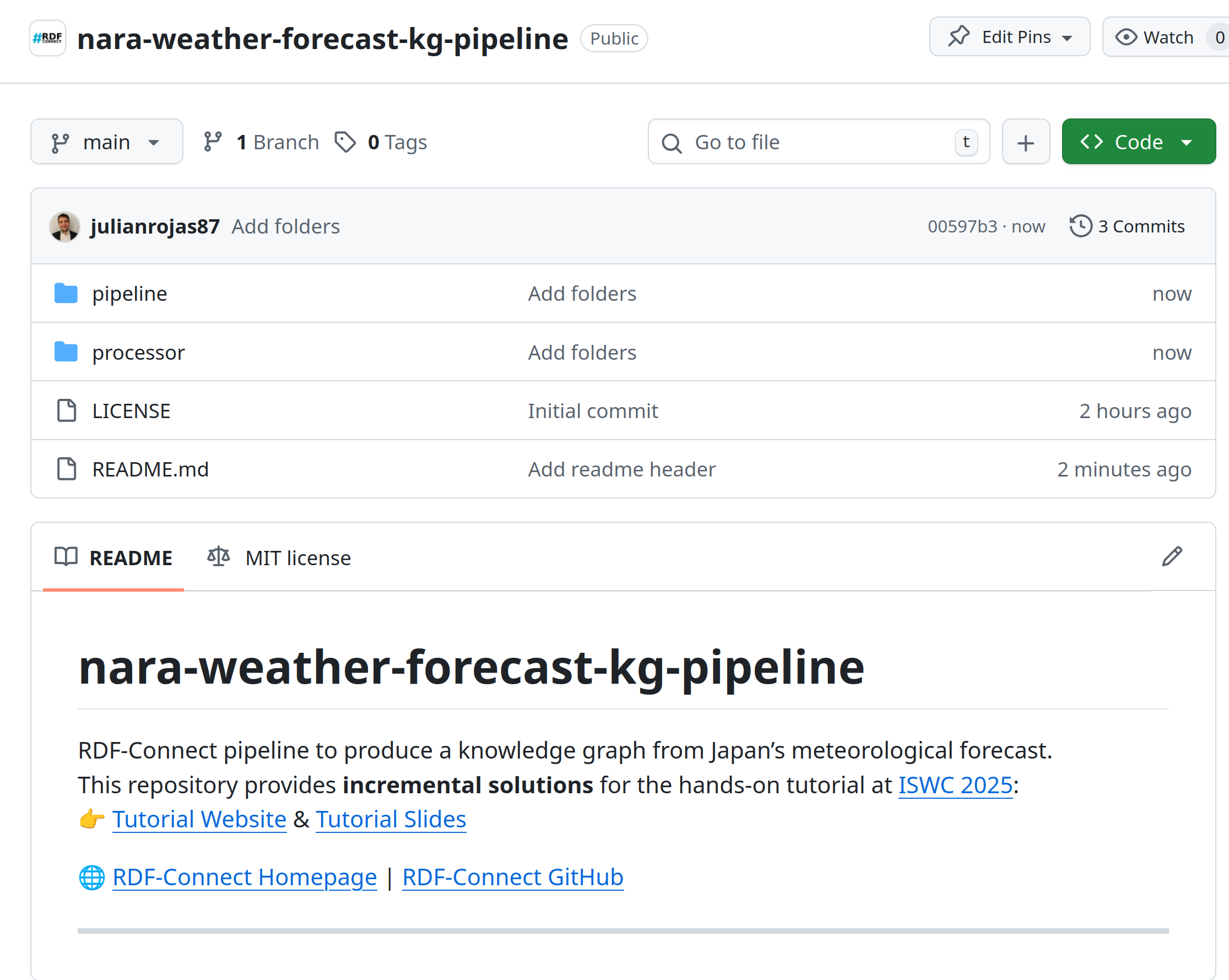

Developer resources

We have prepared a GitHub repository containing a step-by-step guide (split over dedicated branches) that will allow you to start and check the result of any task of the tutorial at any time.

Assembling our very first pipeline

We want to [fetch data from the JMA meteorological forecast API] and [log its contents] to the console.

Follow on our step-by-step
tutorial code repository

• Boilerplate template to get started
• Detailed instructions for each task
• Incremental solutions
• Links to further resources

open.gent/r/iswc-rdfc-repo

Step 0: Choose your environment

Run locally or in a containerized environment:

# Build and run the Docker image
cd pipeline/resources
docker compose up -d

# Access the devbox container
docker compose exec devbox bash
cd pipeline/

# You can now run commands like `npm install` or `npx rdfc pipeline.ttl`
# inside the container


Step 1: Setup

Install the orchestrator, runner, and processors:

npm install @rdfc/orchestrator-js
npm install @rdfc/js-runner
npm install @rdfc/http-utils-processor-ts
npm install @rdfc/log-processor-ts


Step 2: Initialize pipeline.ttl

Add the prefixes rdfc, owl, ex

@prefix rdfc: <https://w3id.org/rdf-connect#>.
@prefix owl: <http://www.w3.org/2002/07/owl#>.
@prefix ex: <http://example.org/>.


Declare the RDF-Connect pipeline

<> a rdfc:Pipeline.


Step 3: Add the rdfc:NodeRunner

Import definition via owl:imports

<> owl:imports <./node_modules/@rdfc/js-runner/index.ttl>.


Attach it to the pipeline declaration

<> a rdfc:Pipeline;
   rdfc:consistsOf [
       rdfc:instantiates rdfc:NodeRunner;
   ].


Step 4: Add the rdfc:HttpFetch processor

Import definition via owl:imports

<> owl:imports <./node_modules/@rdfc/http-utils-processor-ts/processors.ttl>.


Define the channel

<json> a rdfc:Reader, rdfc:Writer.


Define the processor instantiation

<fetcher> a rdfc:HttpFetch;
    rdfc:url "https://www.jma.go.jp/bosai/forecast/data/overview_forecast/290000.json";
    rdfc:writer <json>.


Attach the processor to the runner

<> a rdfc:Pipeline;
   rdfc:consistsOf [
       rdfc:instantiates rdfc:NodeRunner;
       rdfc:processor <fetcher> ].


Step 5: Add the rdfc:LogProcessorJs

Import definition via owl:imports

<> owl:imports <./node_modules/@rdfc/log-processor-ts/processor.ttl>.


Define the processor instantiation

<logger> a rdfc:LogProcessorJs;
    rdfc:reader <json>;
    rdfc:level "info";
    rdfc:label "output".


Attach the processor to the runner

[ rdfc:instantiates rdfc:NodeRunner;
  rdfc:processor <fetcher>, <logger> ].


Step 6: Run the pipeline

npx rdfc pipeline.ttl
# or with debug logging:
LOG_LEVEL=debug npx rdfc pipeline.ttl


✅ Solution available in task-1 branch.

Now try task 0 & 1 yourself!

1. Setup
2. Initialize pipeline.ttl
3. Add the rdfc:NodeRunner
4. Add the rdfc:HttpFetch processor
5. Add the rdfc:LogProcessorJs
6. Run the pipeline

open.gent/r/iswc-rdfc-repo

Data processing pipelines are crucial in modern data-centric systems

They enable the transformation, integration, and analysis of data from and to various sources and targets.

Pipelines are usually composed of multiple complex tasks

However, building, managing and reusing these pipelines can be complex and challenging.

Pipelines are ubiqutous in real world systems

• 🏭 ETL pipelines for data warehousing
• 🔗 Data integration pipelines for combining data from multiple sources
• 🤖 Machine learning pipelines for training and deploying models
• ☄️ Real-time data processing pipelines for streaming data

Our main motivation use case

We faced again and again the challenges of handling the lifecycle of Knowledge Graphs in multiple domains.

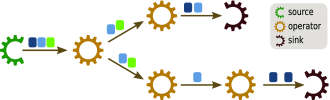

Stream processing computational paradigm for continuous and dynamic data systems

Traditional batch processing systems suffer from latency problems due to the need to collect input data into batches before it can be processed. — Isah, H., et al., A Survey of Distributed Data Stream Processing Frameworks, IEEE Access, 2019

Current real-world data systems often require real-time or near-real-time processing of dynamic data. Stream processing allows for the continuous ingestion and processing of data as it arrives, enabling timely insights and actions.

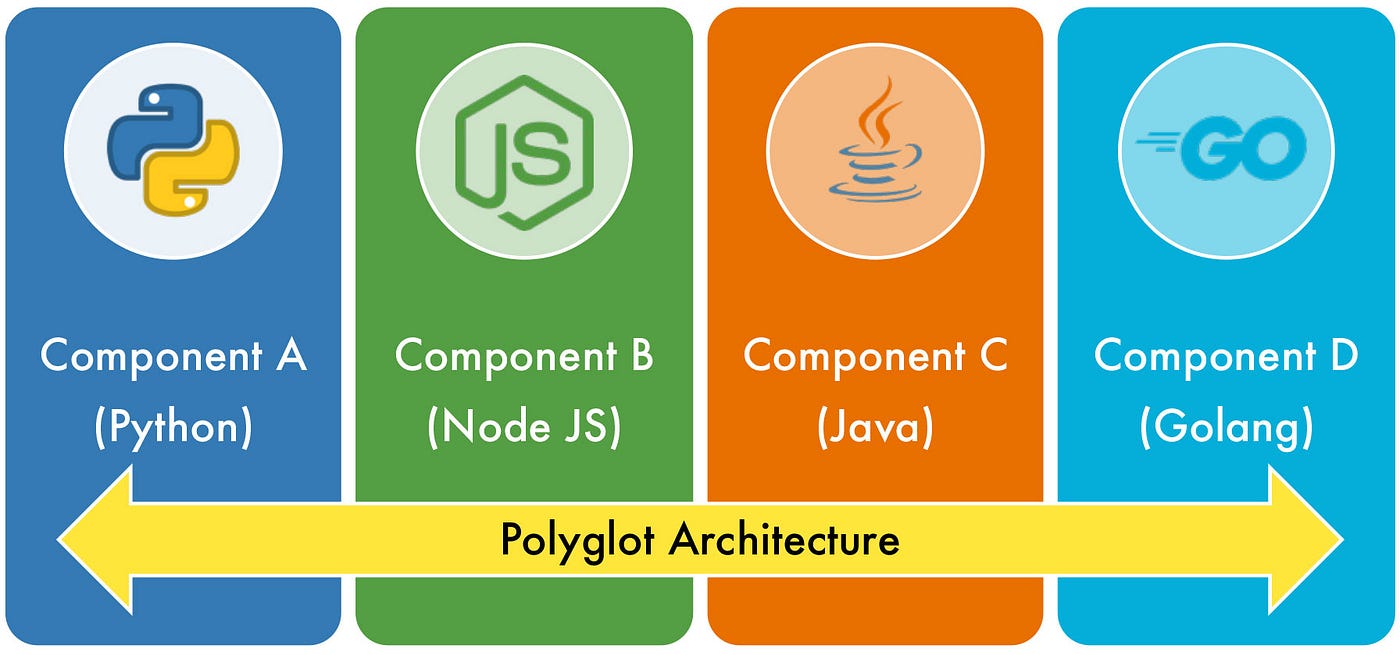

Cross-environment execution: choosing the best of all worlds

The ability to execute applications written in different programming languages in an integrated manner offers several advantages:

• - Flexibility: Developers can choose the most suitable language for each component of the application based on its strengths and capabilities.
• - Code reuse: Existing libraries and frameworks can be leveraged, reducing development time and effort.
• - Scalability: Components can be scaled independently based on their specific requirements, allowing for efficient resource utilization.
• - Efficiency: Not all parts of an application require the same level of optimization.

Declarative, reusable and provenance-aware data processing

RDF-Connect requirements overview

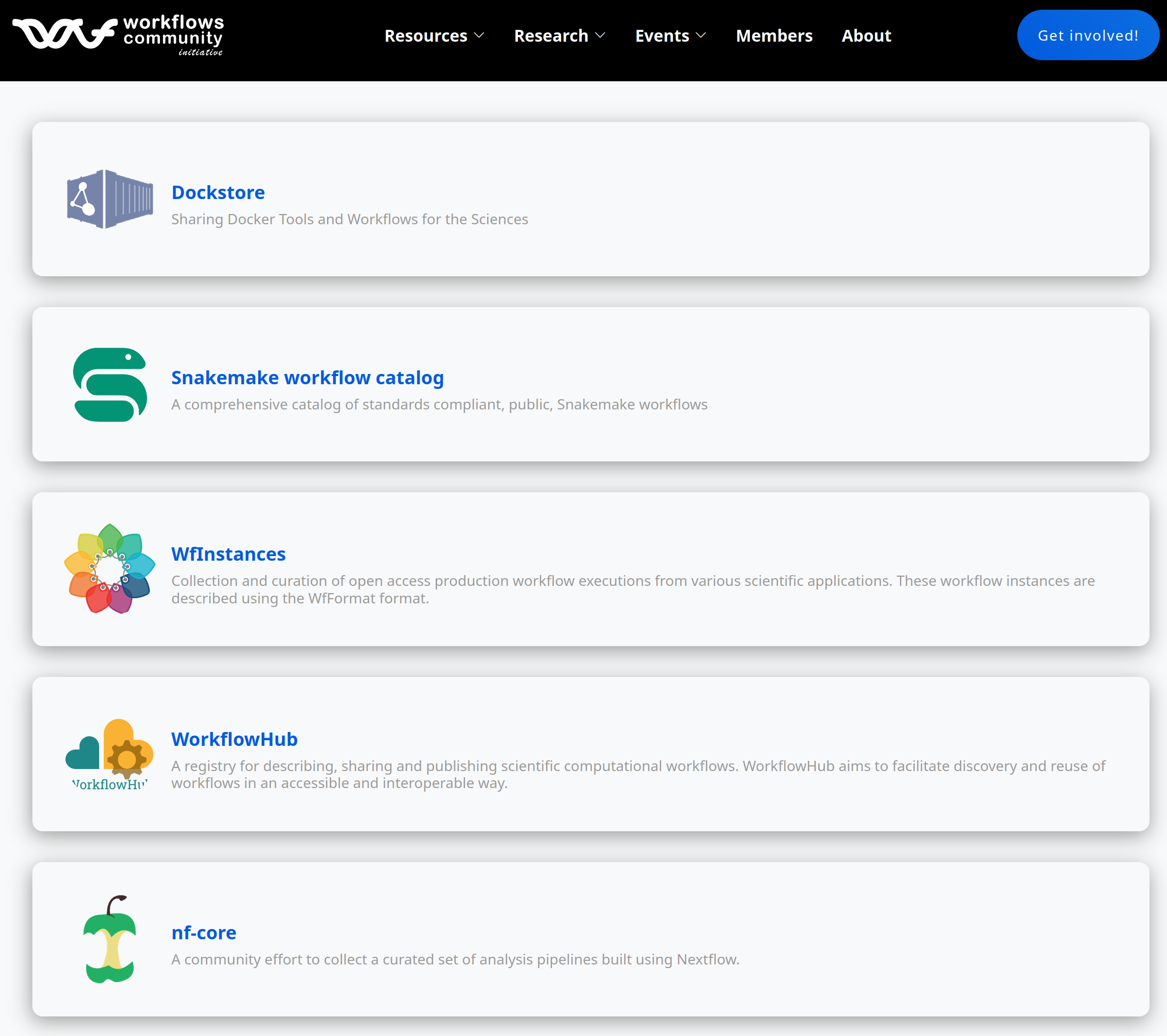

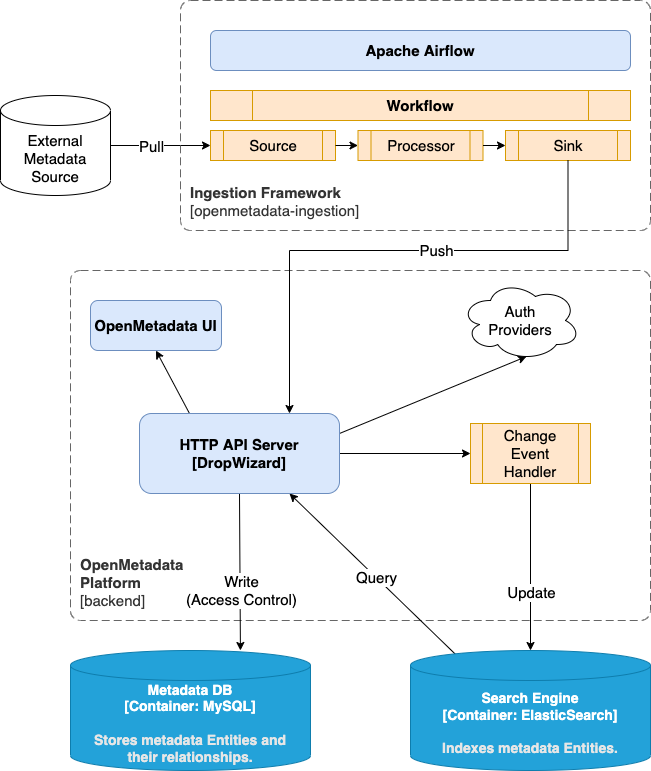

Aren't there like a million pipeline frameworks already?

Aren't there like a million pipeline frameworks already?

Aren't there like a million pipeline frameworks already?

Enter RDF-Connect

RDF-Connect — Key features

A worthy mention:
Common Workflow Language

Common Workflow Language (CWL) is an open standard for describing how to run command line tools and connect them to create workflows.

How is RDF-Connect different from CWL?

Another worthy mention:

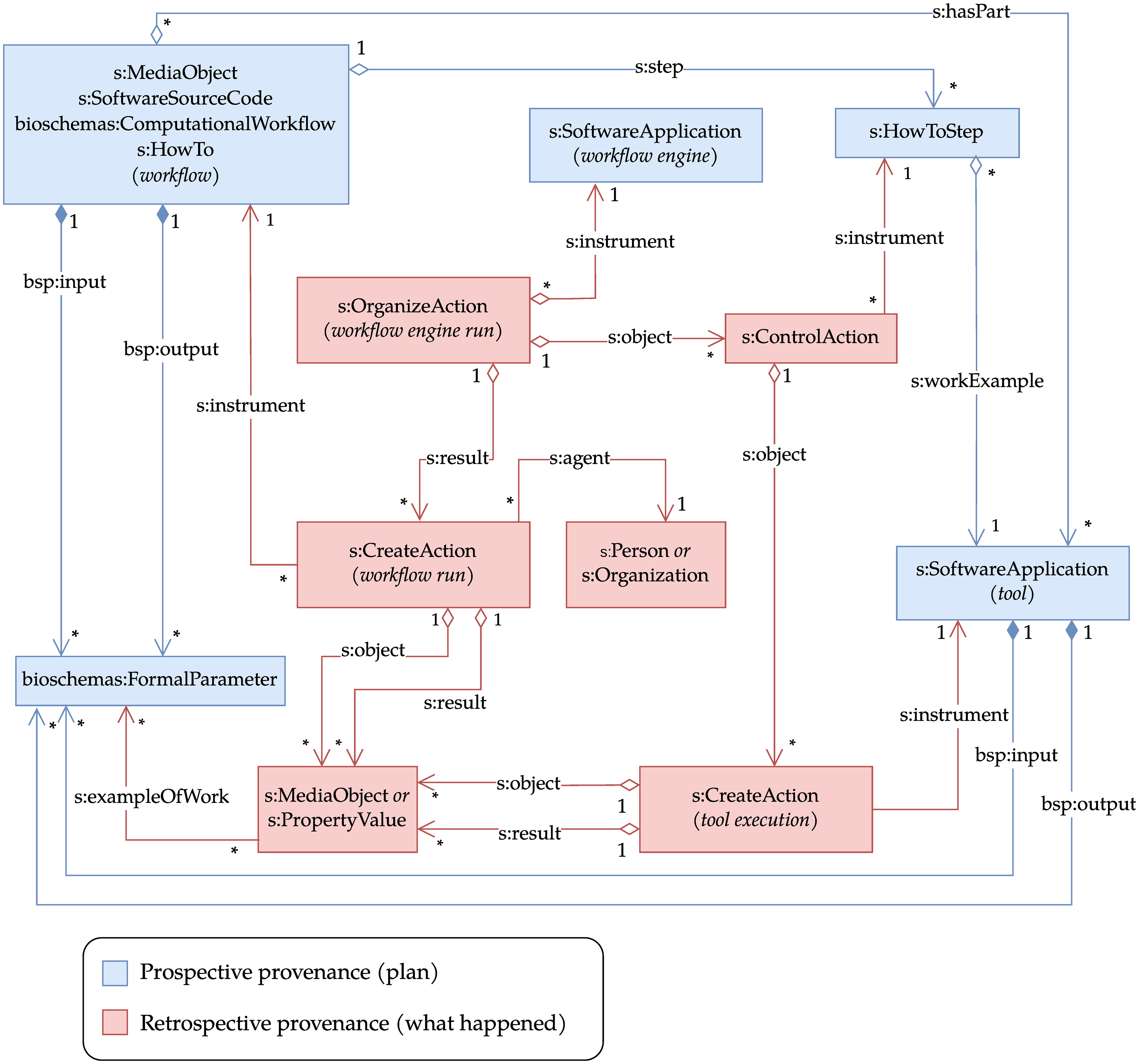

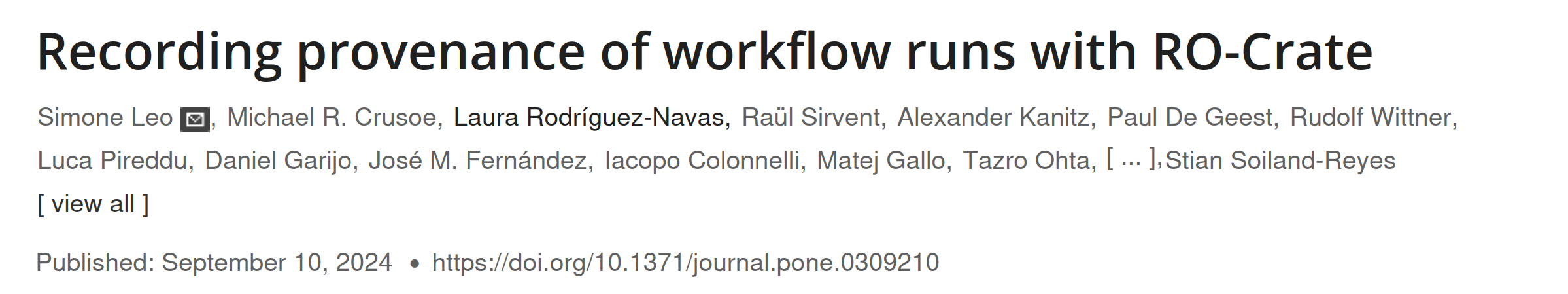

Workflow Run RO-Crate profiles

Workflow Run RO-Crate profiles provide a semantic way to describe workflows including:

• - Process Run Crate: to describe the execution of one or more tools that contribute to a computation;
• - Workflow Run Crate: to describe a computation orchestrated by a predefined workflow;
• - Provenance Run Crate: to describe a workflow computation including the internal details of individual step executions

Agenda

• Morning Session 1: Introduction
• • What will happen in this tutorial? 🤔 (9:00h)
  • Let's get our hands dirty already! 🛠️ (9:10h)
  • The what and why of RDF-Connect? 🎯 (10:00h)
• Coffee break ☕
• Morning Session 2: Architecture
• • RDF-Connect Architecture & Components ⚙️ (11:00h)
  • Assembling a pipeline 🔗 (11:30h)
• Lunch break 🍣
• Afternoon Session 1: Roadmap
• • Implementing a custom processor 🏗️ (13:30)
  • What is next for RDF-Connect? 🛫 (14:30h)
• Coffee break ☕
• Afternoon Session 2: Hackathon 🧑‍💻

Running example: the goal

1. Retrieve JSON data from JMA weather forecast API
2. Data is transformed into RDF using RML
3. Translate language-typed literals to another language
4. RDF data is validated against a shape
5. RDF data is published through a triple store

High-level architecture overview

Pipeline File Structure

A pipeline is described in RDF configuration files:

• 🔗 Channels
  Define how data flows between processors.
• 📦 Runners
  Specify which runtime environments are needed.
• ⚙️ Processors
  Tasks that run inside a runner.

RDF-Connect data model overview

RDF-Connect logical inference over a processor

General definitions in the RDFC ontology:

# Processor class definition
rdfc:Processor a rdfs:Class;
    rdfs:subClassOf prov:Activity.

rdfc:implementationOf a rdf:Property;
    rdfs:subPropertyOf rdfs:subClassOf.

# Property for JavaScript processors
rdfc:jsImplementationOf a rdf:Property;
    rdfs:subPropertyOf rdfc:implementationOf.


# JavaScript Runner definition
<myJSRunner> a rdfc:Runner;
    rdfc:handlesSubjectsOf rdfc:jsImplementationOf;
    rdfc:command "npx js-runner".


RDF-Connect logical inference over a processor

Concrete processor definition:

# Language-specific processor definition
ex:LogProcessorJS rdfc:jsImplementationOf rdfc:Processor.
  rdfs:label "Simple Log Processor for JavaScript";
  rdfs:comment "Logs incoming messages";
  rdfc:entrypoint <./>;
  rdfc:file <./lib/util_processors.js>;
  rdfc:class "LogProcessor".


# Processor instantiation in pipeline
_:p1 a ex:LogProcessorJS;
  ...


Following the simple entailment relations, we obtain that:

check it online

rdfc:jsImplementationOf rdfs:subPropertyOf rdfs:subClassOf.

ex:LogProcessorJS rdfc:implementationOf rdfc:Processor;
  rdfs:subClassOf rdfc:Processor;
  rdfs:subClassOf prov:Activity.

_:p1 a rdfc:Processor, prov:Activity.


Pipeline design of running example

Deep Dive: SHACL Shapes

Each runner and processor comes with a SHACL shape.
These shapes serve as the glue of RDF-Connect:

• ✅ Validation of correctness
  Ensure pipeline definitions are consistent before execution.
• 🔄 Mapping RDF → JSON(-LD)
  Define programming interface, a SHACL shape ensures the expected incoming JSON arguments.
• 📖 Documentation
  SHACL shapes double as a human-readable and computer-readable contract for processor usage.

Deep Dive: SHACL Shapes Example

Deep Dive Orchestrator: Overview

• 📂 Understand pipeline configuration
  Resolve the full pipeline, including any imported modules.
• ✅ Validate pipeline
  Use SHACL shapes to check that the pipeline definition is correct.
• 🔌 Communicate with runners
  Interact with runners via gRPC to control processors and exchange messages.
• 📊 Centralized logging
  Collect logs from all runners and processors for monitoring and debugging.

Deep Dive Orchestrator: Responsibilities

1. 📜 Initialize Pipeline
   1. ▶️ Start runners
      Launch each runner using its configured command.
   2. ⚙️ Initialize processors
      Instruct runners to start the processors they manage.
2. 📡 Route messages
   Deliver incoming messages to the correct runner / processor.

Deep Dive Orchestrator: Message Types

• ✉️ Single messages
  Small payloads that fit in a single frame.
• 🌊 Streaming messages
  Continuous streams for large data that can’t fit in one frame.

Message Types: Single Message

1. Send the message
2. Process the message
3. Acknowledge message processed

Message Types: Streaming Message

Deep Dive Runner: Overview

• 🤝 Bridge between processors and orchestrator
  Make it possible to combine processors written in different programming languages.
• 🌱 Lower the barrier for new processors
  Runners are designed so the community can easily add their own processors. Providing idiomatic interfaces for sending and receiving messages.

Currently, runners exist for JavaScript, JVM, and Python.

Deep Dive Runner: Responsibilities

1. ▶️ Start from command line
   Runners can be launched as standalone processes.
2. 🔌 Connect with orchestrator via gRPC
   Handle control messages and data exchange.
3. ⚙️ Manage processors
   Start, stop, and monitor the processors they host and forward log messages.

Deep Dive Runner: Example

Example of a runner configuration in RDF (Turtle):

Deep Dive Processor: Overview

• ⚡ Unit of computation inside a pipeline
• 📥 Receives arguments mapped from RDF via SHACL
• 📤 Produces outputs (RDF, JSON, etc.)
• 🛠 Can do anything from calling APIs to generic tasks like HTTP POST
• 🏗 The runner defines the implementation contract including abstract classes, interfaces, etc.

Deep Dive: Centralized Logging

• 📊 One place for all logs
  The orchestrator aggregates logs from every runner and processor.
• 🧩 Idiomatic in every language
  Keep using your ecosystem’s standard logger; runners forward those logs to the orchestrator.
• 🎯 Targeted DEBUG
  Show debug output only for a specific component by using its name from the pipeline descriptor.
  Example (bash): DEBUG=:fetcher npx rdfc pipeline.ttl

• 🌐 Easy to extend
  Updating the orchestrator to forward messages to hubs like Elastic Stack (ELK), Grafana Loki, or a hosted service like Datadog is trivial.

JavaScript Ecosystems

• ⚡ Processor extends an abstract class
• ⚙️ Runner provides Readers & Writers to handle messages idiomatically
• 📦 Processors can be published to npm with their config
• 📥 Pipelines install processors via npm install

Java Ecosystems

• ⚡ Processor extends an abstract class
• ⚙️ Runner provides Readers & Writers to handle messages idiomatically
• 📦 Processors published via GitHub, included in fat jar with config
• 📥 Pipelines include Jitpack link in build.gradle

Python ecosystem

• ⚡ Processor extends an abstract class
• ⚙️ Runner provides Readers & Writers to handle messages idiomatically
• 📦 Processors can be published to PyPI with their config
• 📥 Pipelines include processors with uv add (or pip install)

Hands-On

1. 🌦 HTTP Fetch → Log contents
2. 🔄️ Weather API → RDF → Log
3. 🧩️ Weather API → RDF → Validation → Log
4. 🚀️ Weather API → RDF → Validation → Publish → Log
5. 🤖 Implement your own ML processor in Python
6. ✅ Weather API → RDF → Translation → Validation → Publish → Log

Follow allong in the GitHub repository.
All tasks are in the README. Each branch is a solution to a task!
open.gent/r/iswc-rdfc-repo

What we already did this morning

Follow along on branch task-1, or jump to the slides for a recap.

What we already did this morning

@prefix rdfc: <https://w3id.org/rdf-connect#>.
@prefix owl: <http://www.w3.org/2002/07/owl#>.
@prefix ex: <http://example.org/>.


Recap: Running the pipeline

Start the orchestrator with the configuration file:

npx rdfc pipeline.ttl


Hands-On: Pipeline

1. 🌦 HTTP Fetch → Log contents
2. 🔄️ Weather API → RDF → Log
3. 🧩️ Weather API → RDF → Validation → Log
4. 🚀️ Weather API → RDF → Validation → Publish → Log

Follow allong in the GitHub repository.
All tasks are in the README. Each branch is a solution to a task!
open.gent/r/iswc-rdfc-repo

Pipeline design: Weather KG

Weather KG Pipeline: JavaScript Setup

Install the additionally required processors:

npm install @rdfc/file-utils-processors-ts
npm install @rdfc/shacl-processor-ts
npm install @rdfc/sparql-ingest-processor-ts


Weather KG Pipeline: Java Setup

Add the required dependency to your Gradle build file:

plugins { id 'java' }
repositories {
    mavenCentral()
    maven { url = uri("https://jitpack.io") }
}
dependencies {
    implementation("com.github.rdf-connect:rml-processor-jvm:master-SNAPSHOT:all")
}
tasks.register('copyPlugins', Copy) {
    from configurations.runtimeClasspath
    into "$buildDir/plugins"
}


       wget 'jitpack.io/com/github/rdf-connect/rml-processor-jvm/master-SNAPSHOT/rml-processor-jvm-master-SNAPSHOT-all.jar'


Run the Weather KG Pipeline

Start the orchestrator with the configuration file:

npx rdfc pipeline.ttl


Now try it yourself!

🛠️ Follow Part 1 in the repo (up to Task 4)

⏰ You have time till lunch

🙋 Ask questions!

open.gent/r/iswc-rdfc-repo

Agenda

• Morning Session 1: Introduction
• • What will happen in this tutorial? 🤔 (9:00h)
  • Let's get our hands dirty already! 🛠️ (9:10h)
  • The what and why of RDF-Connect? 🎯 (10:00h)
• Coffee break ☕
• Morning Session 2: Architecture
• • RDF-Connect Architecture & Components ⚙️ (11:00h)
  • Assembling a pipeline 🔗 (11:30h)
• Lunch break 🍣
• Afternoon Session 1: Roadmap
• • Implementing a custom processor 🏗️ (13:30)
  • What is next for RDF-Connect? 🛫 (14:30h)
• Coffee break ☕
• Afternoon Session 2: Hackathon 🧑‍💻

Hands-On

1. 🌦 HTTP Fetch → Log contents
2. 🔄️ Weather API → RDF → Log
hands-on-2
3. 🧩️ Weather API → RDF → Validation → Log
4. 🚀️ Weather API → RDF → Validation → Publish → Log
5. 🤖 Implement your own ML processor in Python
6. ✅ Weather API → RDF → Translation → Validation → Publish → Log

Follow allong in the GitHub repository.
All tasks are in the README. Each branch is a solution to a task!
open.gent/r/iswc-rdfc-repo

Implement a processor

1. Define the processor and its SHACL shape in processor.ttl
2. Implement the processor class
   • Extend the abstract class
   • Implement the init, transform, and produce methods
   • Use Readers & Writers to handle messages
3. Publish the processor
4. Use the processor in a pipeline

Define the processor in processor.ttl

@prefix rdfc: <https://w3id.org/rdf-connect#>.
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#>.


Define the processor in processor.ttl


@prefix rdfc: <https://w3id.org/rdf-connect#>.
@prefix sh: <http://www.w3.org/ns/shacl#>.
@prefix xsd: <http://www.w3.org/2001/XMLSchema#>.



Implement the processor class

Start from a processor template repository

TypeScript
https://github.com/rdf-connect/template-processor-ts

Python
https://github.com/rdf-connect/template-processor-py

Java
https://github.com/rdf-connect/template-processor-jvm

Implement a Python processor

1. In the transform method: consume the reader channel
2. Parse the input using rdflib
3. Identify language-tagged literals with @ja
4. Translate them to English using a ML model
5. Emit both original and translated triples to the writer channel
6. Define the processor in processor.ttl

Add the Python runner

Set up the pyproject.toml for your pipeline

Add the Python runner

Install the runner:

uv add rdfc_runner


Import definition via owl:imports

<> owl:imports <./.venv/lib/python3.13/site-packages/rdfc_runner/index.ttl>.


Attach it to the pipeline declaration

<> a rdfc:Pipeline;
   rdfc:consistsOf [...], [
       rdfc:instantiates rdfc:PyRunner;
       rdfc:processor <translator>
   ].


Add your translation processor

Install your local processor after hatch build

uv add ../processor/dist/rdfc_translation_processor.tar.gz


Import definition via owl:imports

<> owl:imports <./.venv/lib/python3.13/site-packages/rdfc_translation_processor/processor.ttl>.


Define the channel

<translated> a rdfc:Reader, rdfc:Writer.


Define the processor instantiation

<translator> a rdfc:TranslationProcessor;
    rdfc:reader <rdf>;
    rdfc:writer <translated>;
    ... .


Hands-On: Processor

5. 🤖 Implement your own ML processor in Python
6. ✅ Weather API → RDF → Translation → Validation → Publish → Log

Follow allong in the GitHub repository.
All tasks are in the README. Each branch is a solution to a task!
open.gent/r/iswc-rdfc-repo

Pipeline design: Weather KG With ML

Now try it yourself!

🛠️ Follow Part 2 in the repo (Task 5 - 7)

🙋 Ask questions!

open.gent/r/iswc-rdfc-repo

What is next for RDF-Connect?

We envision the following development and research roads:

• 📜 Alignment with existing initiatives for metadata management
• 🗠 Implementation of execution monitoring
• 🧑‍💻 Add support for other programming languages
• ☁️ Support for federated and cloud-native execution
• 🤖 Automated Processor and Pipeline generation
• 🚀 Zero-copy approaches for data exchange, e.g., Apache Arrow

Community-driven Metadata innitiatives

Several innitiatives exist for the standardization of workflow metadata

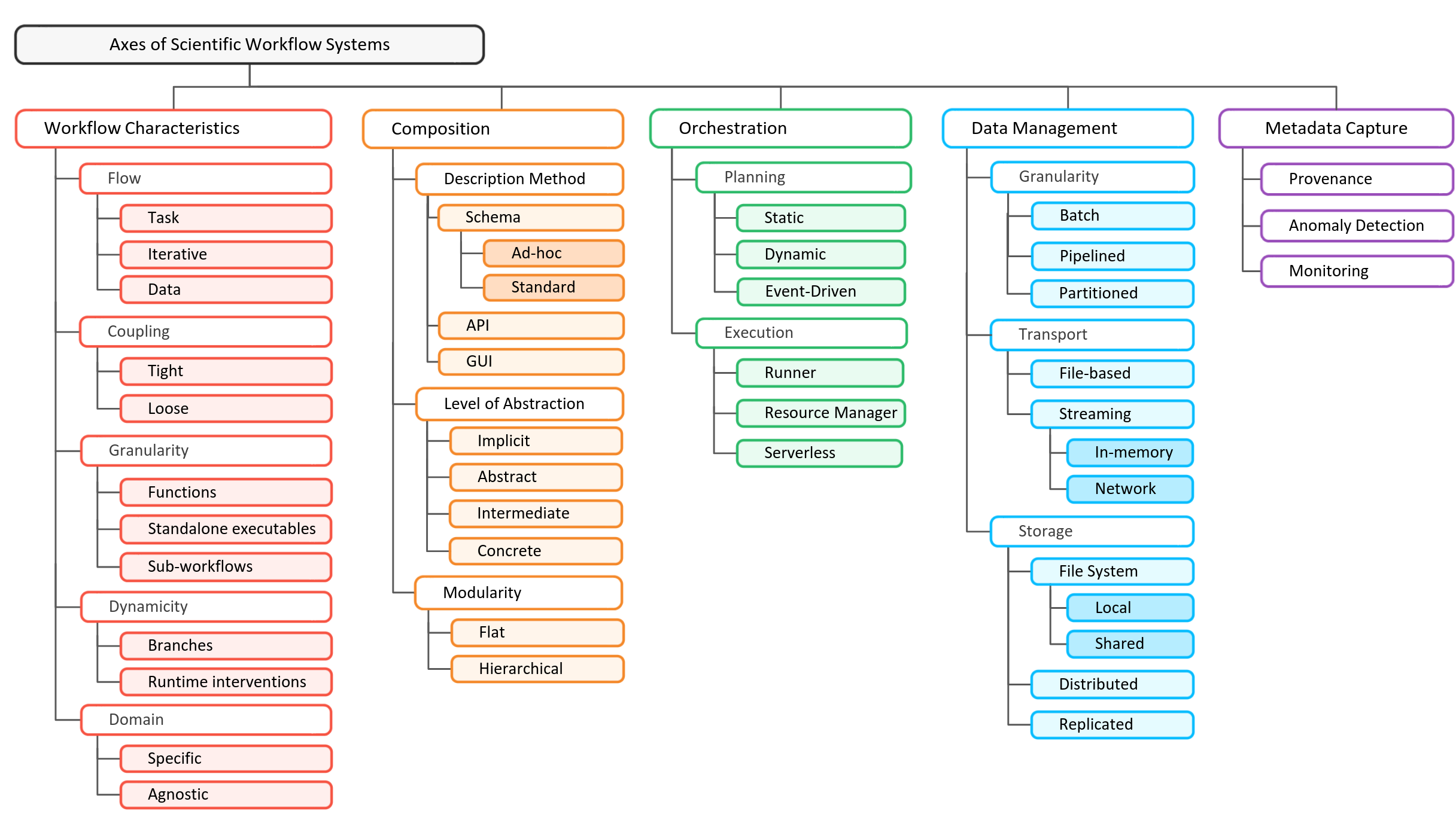

Workflows Community Initiative (WCI)

The WCI aims to foster collaboration and standardization in the field of scientific workflow management. It provides a common framework for describing workflows, their components, and execution metadata. By aligning RDF-Connect with WCI standards, we can enhance interoperability and facilitate the sharing of workflow metadata across different platforms and tools.

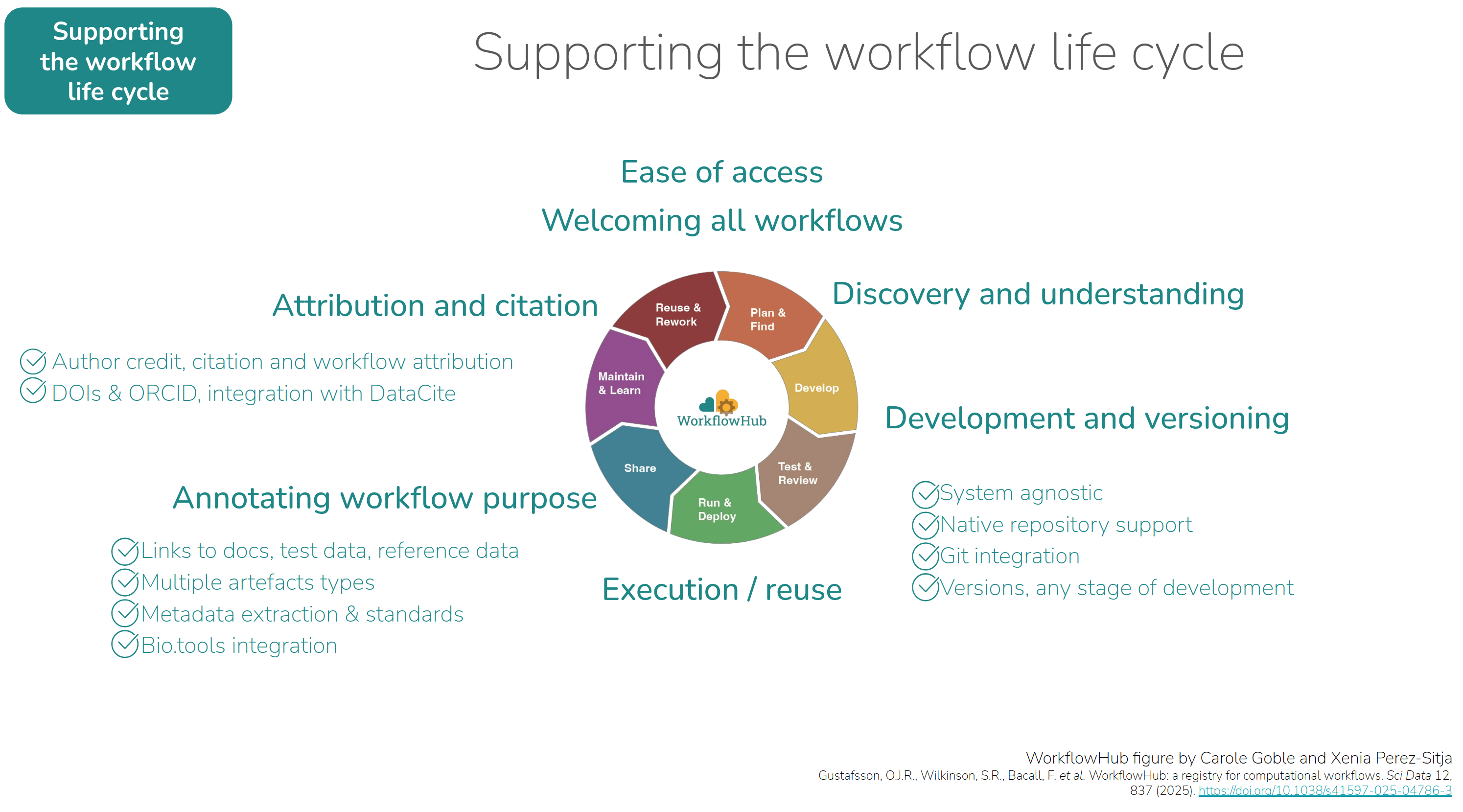

WorkflowHub

WorkflowHub is a platform for sharing and discovering scientific workflows. It provides a repository for workflow definitions, metadata, and execution records.

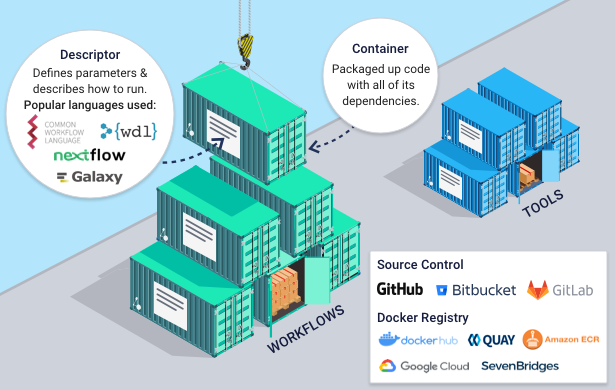

Dockstore

Dockstore is a platform for sharing reusable and scalable analytical tools and workflows. It supports a variety of workflow languages and provides features for versioning, collaboration, and execution tracking.

Workflow Run RO-Crates Profile

The Workflow Run RO-Crates Profile extends the RO-Crate specification to better support the description of workflow executions and their associated metadata. A semantic alignment between RDF-Connect and the Workflow Run RO-Crates Profile will enable seamless integration of workflow execution metadata into RO-Crates, facilitating better reproducibility and sharing of scientific workflows.

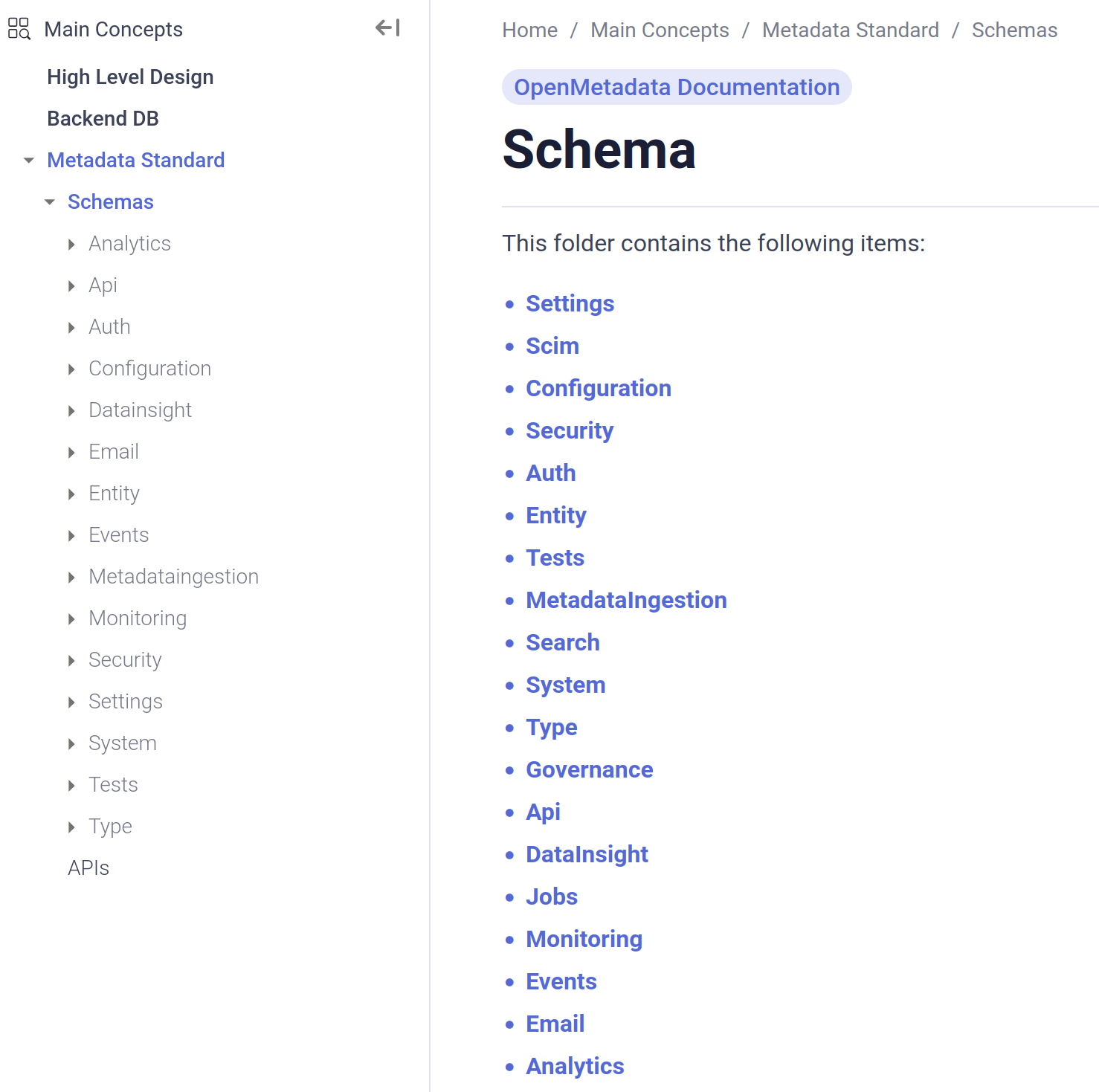

OpenMetadata platform

OpenMetadata is an open-source metadata management platform that provides a unified view of data assets across an organization. It offers features for data discovery, lineage tracking, and governance.

OpenLineage framework

OpenLineage is an open standard for metadata and lineage collection designed to instrument data pipelines and applications.

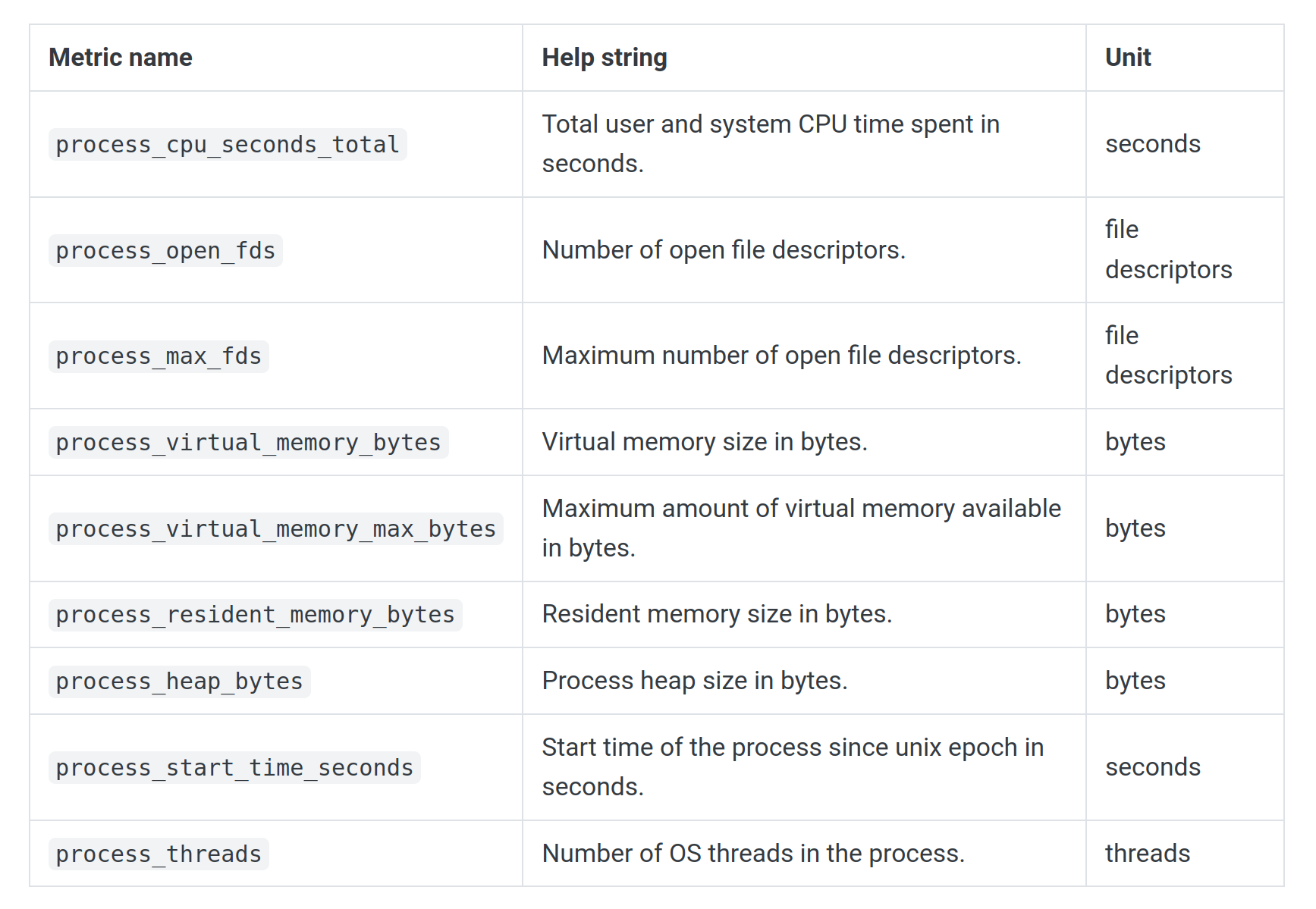

Live monitoring capabilites

Integration of RDF-Connect with systems such as Prometheus. This will allow real-time tracking of pipeline execution, resource utilization, and performance metrics, enabling users to monitor and optimize their workflows effectively.

Support for other programming languages

RDF-Connect extension to support other languages such as:

Support for federated and cloud-native execution

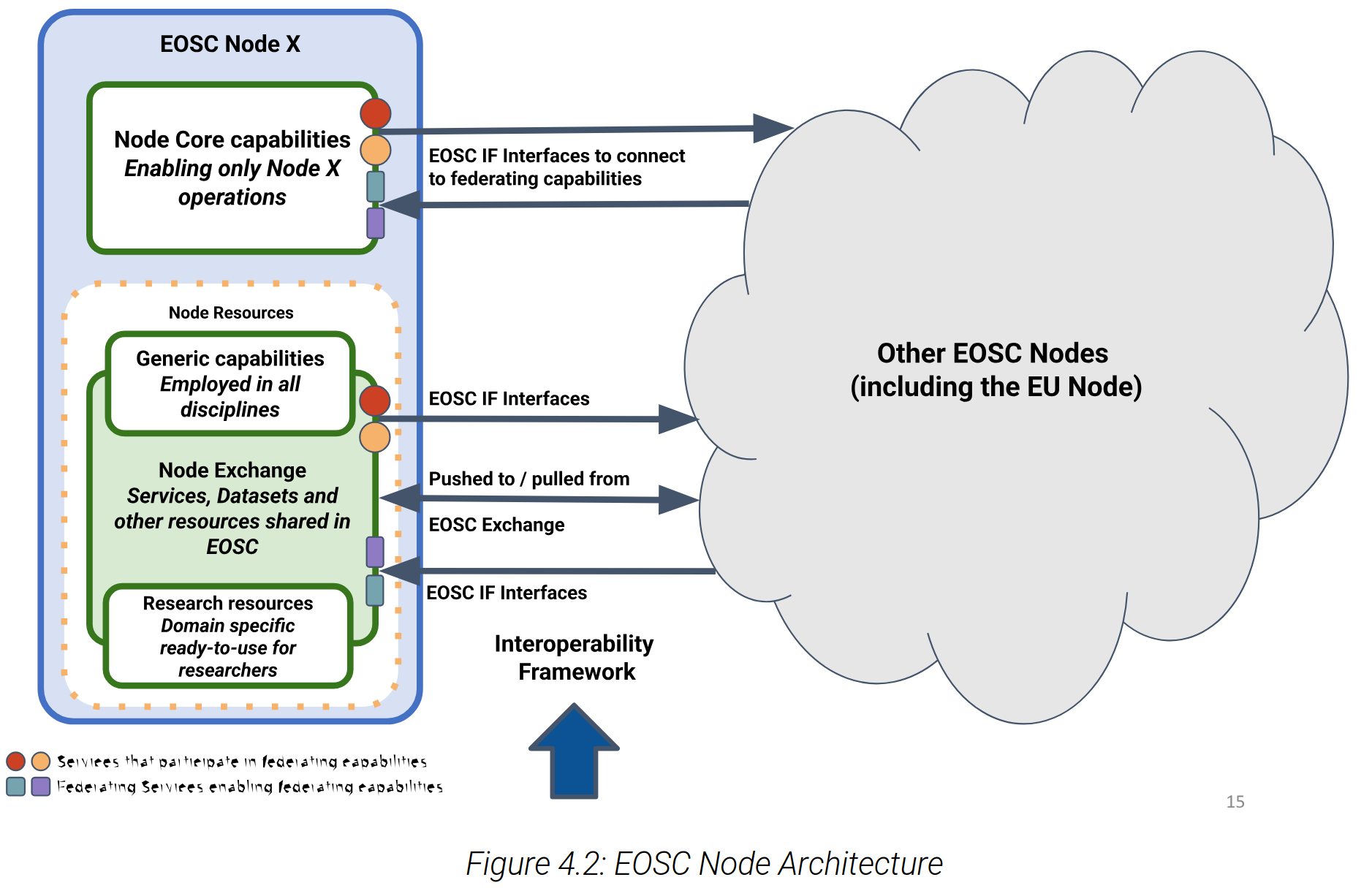

Remote execution of RDF-Connect Runners beyond CLI. For instance within EOSC (European Open Science Cloud) nodes.

Automation of workflow development and management

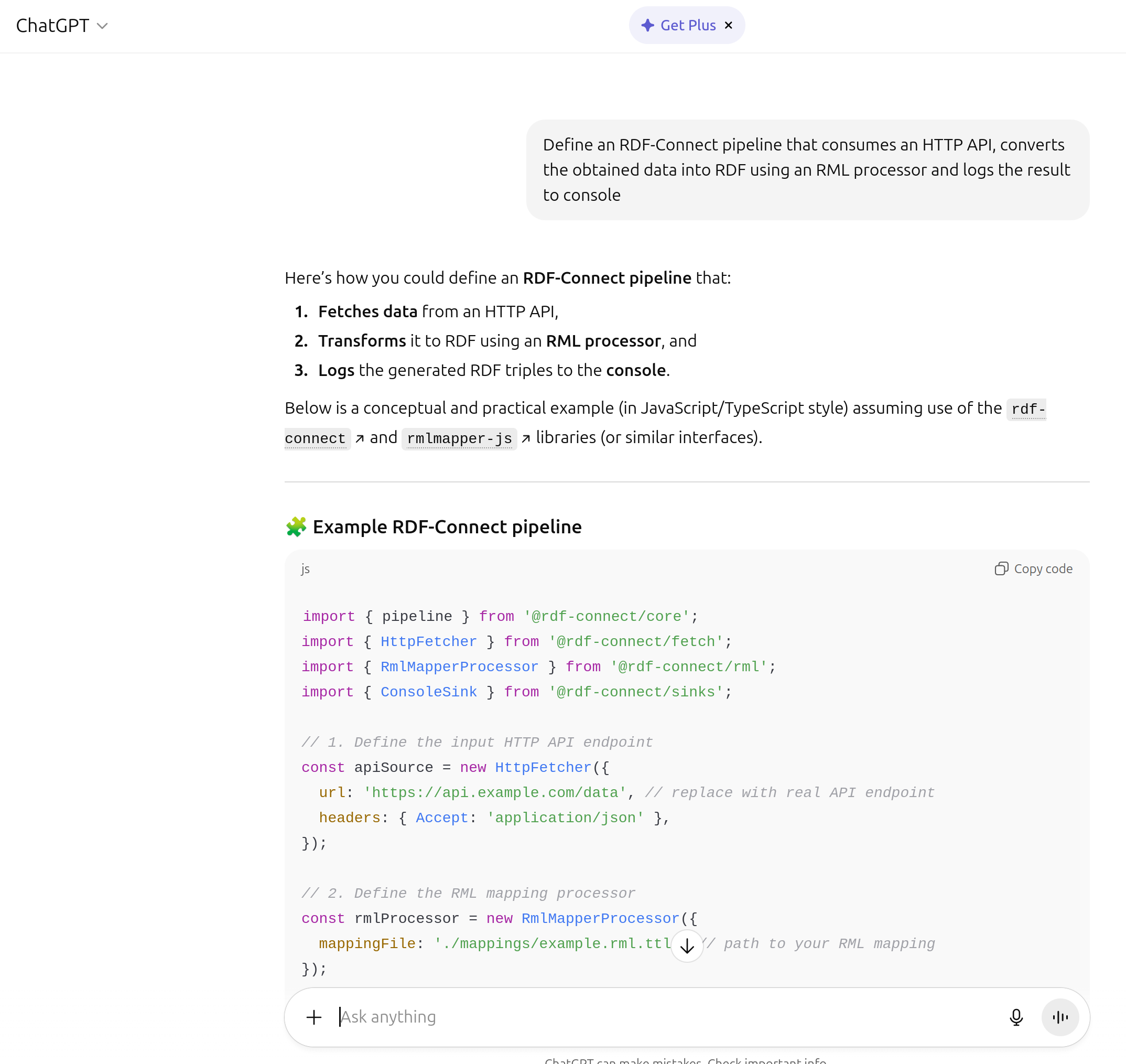

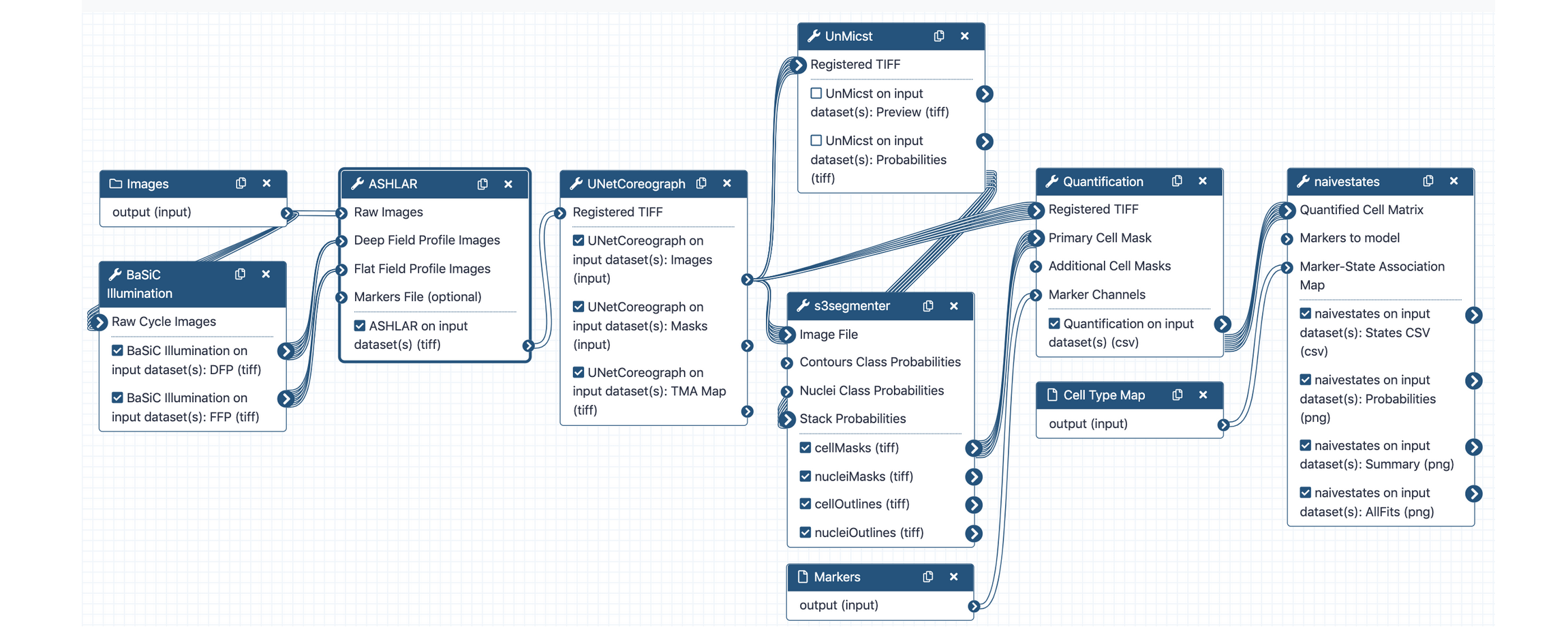

Leverage generative AI capabilities to automate Processor and Pipeline development. Also, provideUI-based pipeline management.

Optimization of data flows

Zero-copy data movement: Integration with Apache Arrow (where possible) to optimize data flow performance and efficiency.

Let's Code Something Together

Goal: build a pipeline using software that’s going to be introduced later during ISWC.
Each of you can contribute by wrapping new or existing software as a processor compatible with RDF-Connect.

Once we have a few, we’ll connect them into a shared pipeline and see what we can create together!

Do you know of any software we could try? We’ve spotted some ideas already: Jelly, RDFMutate, pycottas, rdf2vecgpu, or we could even generate data cubes.

What Could Our Pipeline Do?

We already have plenty of ideas for individual processors — but what about the bigger picture? What could a complete pipeline actually achieve?

Let’s brainstorm: combine analysis, transformation, or visualization — something fun and meaningful that shows what RDF-Connect can do when we link our work together.

Hackathon Flow 💡

1. Pick a tool or idea — something new, weird, or cool you want to plug in.
2. Wrap it as a processor — make it talk RDF-Connect style.
3. Test it! — see if it runs standalone, maybe share your results.
4. Connect it — link your processor into our shared pipeline.
5. Celebrate 🎉 — watch the data flow and see what we built together!

👉 Don’t worry about perfection — the goal is to explore, experiment, and have fun connecting ideas.

Please create a GitHub repository for your processor and let us link them together in a pipeline.

Building Streaming and Cross-Environment Data Processing
Pipelines with RDF-Connect

Thank you!

We sincerely hope you enjoyed this tutorial
and found it valuable.

w3id.org/rdf-connect
