Building Streaming and Cross-Environment Data Processing Pipelines with RDF-Connect

Agenda

• First part: Introduction to RDF-Connect (1:30h)
• • What will we do in this tutorial? 🤔
  • Assembling our very first pipeline! 🛠️
  • The what and why of RDF-Connect? 🎯
  • RDF-Connect Architecture & Components ⚙️
• Lunch break 🍔 (1h)
• Second part: Hands-on (1:30h)
• • Assembling a pipeline 🔗
  • Implementing a processor 🏗️

Tutorial overview

KG lifecycle pipeline

A pipeline of a knowledge graph lifecycle process, where weather data (from an Austrian API service) will be collected, transformed into RDF, validated against a SHACL shape, enriched and published on a RDF graph store.

Assembling our very first pipeline

We want to fetch the GeoSphere weather data API,
and log its contents to the console.

We provide a step-by-step
tutorial code repository

• Boilerplate template to get started
• Detailed instructions for each task
• Incremental solutions
• Links to further resources

open.gent/r/semantics-repo

Step 1: Setup

Install the orchestrator, runner, and processors:

npm install @rdfc/orchestrator-js
npm install @rdfc/js-runner
npm install @rdfc/http-utils-processor-ts
npm install @rdfc/log-processor-ts


Step 2: Initialize pipeline.ttl

Add the prefixes rdfc, owl, ex

@prefix rdfc: <https://w3id.org/rdf-connect#>.
@prefix owl: <http://www.w3.org/2002/07/owl#>.
@prefix ex: <http://example.org/>.


Declare the RDF-Connect pipeline

<> a rdfc:Pipeline.


Step 3: Add the rdfc:NodeRunner

Import definition via owl:imports

<> owl:imports <./node_modules/@rdfc/js-runner/index.ttl>.


Attach it to the pipeline declaration

<> a rdfc:Pipeline;
   rdfc:consistsOf [
       rdfc:instantiates rdfc:NodeRunner;
   ].


Step 4: Add the rdfc:HttpFetch processor

Import definition via owl:imports

<> owl:imports <./node_modules/@rdfc/http-utils-processor-ts/processors.ttl>.


Define the channel

<json> a rdfc:Reader, rdfc:Writer.


Define the processor instantiation

<fetcher> a rdfc:HttpFetch;
    rdfc:url "https://dataset.api.hub.geosphere.at/v1/station/current/tawes-v1-10min?parameters=TL,RR&station_ids=11035";
    rdfc:writer <json>.


Attach the processor to the runner

<> a rdfc:Pipeline;
   rdfc:consistsOf [
       rdfc:instantiates rdfc:NodeRunner;
       rdfc:consistsOf <fetcher> ].


Step 5: Add the rdfc:LogProcessorJs

Import definition via owl:imports

<> owl:imports <./node_modules/@rdfc/log-processor-ts/processor.ttl>.


Define the processor instantiation

<logger> a rdfc:LogProcessorJs;
    rdfc:reader <json>;
    rdfc:level "info";
    rdfc:label "output".


Attach the processor to the runner

[ rdfc:instantiates rdfc:NodeRunner;
  rdfc:consistsOf <fetcher>, <logger> ].


Step 6: Run the pipeline

npx rdfc pipeline.ttl
# or with debug logging:
LOG_LEVEL=debug npx rdfc pipeline.ttl


✅ Solution available in task-1 branch.

Now try task 0 & 1 yourself!

1. Setup
2. Initialize pipeline.ttl
3. Add the rdfc:NodeRunner
4. Add the rdfc:HttpFetch processor
5. Add the rdfc:LogProcessorJs
6. Run the pipeline

open.gent/r/semantics-repo

Data processing pipelines are crucial in modern data-centric systems

They enable the transformation, integration, and analysis of data from and to various sources and targets.

Pipelines are usually composed of multiple complex tasks

However, building, managing and reusing these pipelines can be complex and challenging.

Pipelines are ubiqutous in real world systems

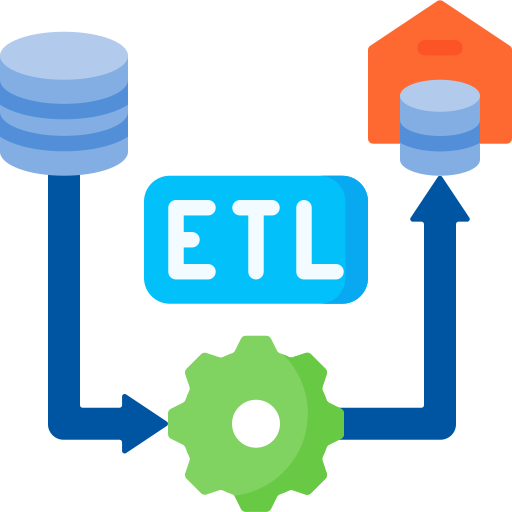

• ETL pipelines for data warehousing
• Data integration pipelines for combining data from multiple sources

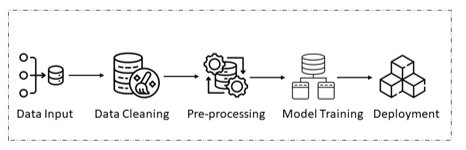

• Machine learning pipelines for training and deploying models
• Real-time data processing pipelines for streaming data

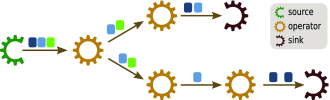

Stream processing computational paradigm for continuous and dynamic data systems

Traditional batch processing systems suffer from latency problems due to the need to collect input data into batches before it can be processed. — Isah, H., et al., A Survey of Distributed Data Stream Processing Frameworks, IEEE Access, 2019

Current real-world data systems often require real-time or near-real-time processing of dynamic data. Stream processing allows for the continuous ingestion and processing of data as it arrives, enabling timely insights and actions.

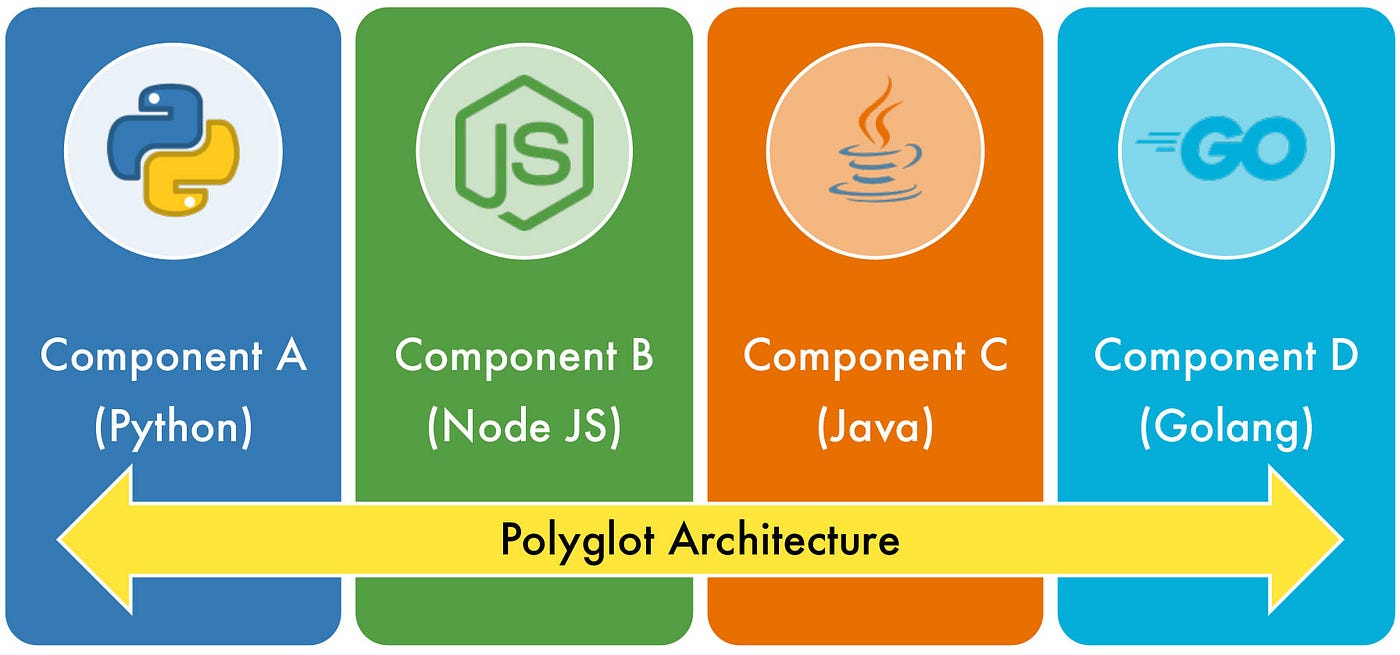

Cross-environment execution: choosing the best of all worlds

The ability to execute applications written in different programming languages in an integrated manner offers several advantages:

• - Flexibility: Developers can choose the most suitable language for each component of the application based on its strengths and capabilities.
• - Code reuse: Existing libraries and frameworks can be leveraged, reducing development time and effort.
• - Scalability: Components can be scaled independently based on their specific requirements, allowing for efficient resource utilization.
• - Efficiency: Not all parts of an application require the same level of optimization.

Declarative, reusable and provenance-aware data processing

RDF-Connect requirements overview

Aren't there like a million pipeline frameworks already?

Aren't there like a million pipeline frameworks already?

Aren't there like a million pipeline frameworks already?

A worthy mention:
Common Workflow Language

Common Workflow Language (CWL) is an open standard for describing how to run command line tools and connect them to create workflows.

How is RDF-Connect different from CWL?

Running example: the goal

1. Retrieve JSON data from GeoSphere weather API
2. Data is transformed into RDF using RML
3. Translate language-typed literals to another language
4. RDF data is validated against a shape
5. RDF data is published through a triple store

High level architecture overview

TODO: Diagram with generic architecture overview. I imagine a simple layered architecture having:

• - an orchestration layer at the top
• - a runners layer highlighting the different environments (e.g., Node.js, browser, Python, etc.)
• - a processors layer with the processors belonging to the different environments
• - a vertical channel layer across all other layers, since channels are used by all other components

RDF-Connect data model overview

TODO: Diagram with RDFC ontology showing main concepts and relations (similar to the one in the ISWC paper)

Pipeline design of running example

Pipeline File Structure

A pipeline is described in RDF configuration files:

• 🔗 Channels
  Define how data flows between processors.
• 📦 Runners
  Specify which runtime environments are needed.
• ⚙️ Processors
  Tasks that run inside a runner.

Deep Dive: SHACL Shapes

Each runner and processor comes with a SHACL shape.
These shapes serve as the glue of RDF-Connect:

• ✅ Validation of correctness
  Ensure pipeline definitions are consistent before execution.
• 🔄 Mapping RDF → JSON(-LD)
  Define programming interface, a SHACL shape ensures the expected incoming JSON arguments.
• 📖 Documentation
  SHACL shapes double as a human-readable and computer-readable contract for processor usage.

Deep Dive: SHACL Shapes Example

Deep Dive Orchestrator: Overview

• 📂 Understand pipeline configuration
  Resolve the full pipeline, including any imported modules.
• ✅ Validate pipeline
  Use SHACL shapes to check that the pipeline definition is correct.
• 🔌 Communicate with runners
  Interact with runners via gRPC to control processors and exchange messages.
• 📊 Centralized logging
  Collect logs from all runners and processors for monitoring and debugging.

Deep Dive Orchestrator: Responsibilities

1. 📜 Initialize Pipeline
   1. ▶️ Start runners
      Launch each runner using its configured command.
   2. ⚙️ Initialize processors
      Instruct runners to start the processors they manage.
2. 📡 Route messages
   Deliver incoming messages to the correct runner / processor.

Deep Dive Orchestrator: Message Types

• ✉️ Single messages
  Small payloads that fit in a single frame.
• 🌊 Streaming messages
  Continuous streams for large data that can’t fit in one frame.

Deep Dive Runner: Overview

• 🤝 Bridge between processors and orchestrator
  Make it possible to combine processors written in different programming languages.
• 🌱 Lower the barrier for new processors
  Runners are designed so the community can easily add their own processors. Providing idiomatic interfaces for sending and receiving messages.

Currently, runners exist for JavaScript, JVM, and Python.

Deep Dive Runner: Responsibilities

1. ▶️ Start from command line
   Runners can be launched as standalone processes.
2. 🔌 Connect with orchestrator via gRPC
   Handle control messages and data exchange.
3. ⚙️ Manage processors
   Start, stop, and monitor the processors they host and forward log messages.

Deep Dive Runner: Example

Example of a runner configuration in RDF (Turtle):

Deep Dive Processor: Overview

• ⚡ Unit of computation inside a pipeline
• 📥 Receives arguments mapped from RDF via SHACL
• 📤 Produces outputs (RDF, JSON, etc.)
• 🛠 Can do anything from calling APIs to generic tasks like HTTP POST
• 🏗 The runner defines the implementation contract including abstract classes, interfaces, etc.

Deep Dive: Centralized Logging

• 📊 One place for all logs
  The orchestrator aggregates logs from every runner and processor.
• 🧩 Idiomatic in every language
  Keep using your ecosystem’s standard logger; runners forward those logs to the orchestrator.
• 🎯 Targeted DEBUG
  Show debug output only for a specific component by using its name from the pipeline descriptor.
  Example (bash): DEBUG=:fetcher npx rdfc pipeline.ttl

• 🌐 Easy to extend
  Updating the orchestrator to forward messages to hubs like Elastic Stack (ELK), Grafana Loki, or a hosted service like Datadog is trivial.

JavaScript Ecosystems

• ⚡ Processor extends an abstract class
• ⚙️ Runner provides Readers & Writers to handle messages idiomatically
• 📦 Processors can be published to npm with their config
• 📥 Pipelines install processors via npm install

Java Ecosystems

• ⚡ Processor extends an abstract class
• ⚙️ Runner provides Readers & Writers to handle messages idiomatically
• 📦 Processors published via GitHub, included in fat jar with config
• 📥 Pipelines include Jitpack link in build.gradle

Python ecosystem

• ⚡ Processor extends an abstract class
• ⚙️ Runner provides Readers & Writers to handle messages idiomatically
• 📦 Processors can be published to PyPI with their config
• 📥 Pipelines include processors with uv add (or pip install)

Hands-On

1. 🌦 HTTP Fetch → Log contents
2. 🔄️ Weather API → RDF → Log
3. 🧩️ Weather API → RDF → Validation → Log
4. 🚀️ Weather API → RDF → Validation → Publish → Log
5. 🤖 Implement your own ML processor in Python
6. ✅ Weather API → RDF → Translation → Validation → Publish → Log

Follow allong in the GitHub repository.
All tasks are in the README. Each branch is a solution to a task!
open.gent/r/semantics-repo

What we already did this morning

Follow along on branch task-1, or jump to the slides for a recap.

What we already did this morning

@prefix rdfc: <https://w3id.org/rdf-connect#>.
@prefix owl: <http://www.w3.org/2002/07/owl#>.
@prefix ex: <http://example.org/>.


Recap: Running the pipeline

Start the orchestrator with the configuration file:

npx rdfc pipeline.ttl


Hands-On: Pipeline

1. 🌦 HTTP Fetch → Log contents
2. 🔄️ Weather API → RDF → Log
3. 🧩️ Weather API → RDF → Validation → Log
4. 🚀️ Weather API → RDF → Validation → Publish → Log

Follow allong in the GitHub repository.
All tasks are in the README. Each branch is a solution to a task!
open.gent/r/semantics-repo

Pipeline design: Weather KG

Weather KG Pipeline: JavaScript Setup

Install the additionally required processors:

npm install @rdfc/file-utils-processors-ts
npm install @rdfc/shacl-processor-ts
npm install @rdfc/sparql-ingest-processor-ts


Weather KG Pipeline: Java Setup

Add the required dependency to your Gradle build file:

plugins { id 'java' }
repositories {
    mavenCentral()
    maven { url = uri("https://jitpack.io") }
}
dependencies {
    implementation("com.github.rdf-connect:rml-processor-jvm:master-SNAPSHOT:all")
}
tasks.register('copyPlugins', Copy) {
    from configurations.runtimeClasspath
    into "$buildDir/plugins"
}


       wget 'jitpack.io/com/github/rdf-connect/rml-processor-jvm/master-SNAPSHOT/rml-processor-jvm-master-SNAPSHOT-all.jar'


Run the Weather KG Pipeline

Start the orchestrator with the configuration file:

npx rdfc pipeline.ttl


Now try it yourself!

🛠️ Follow Part 1 in the repo (up to Task 4)

⏰ We continue with the presentation at 13:45

🙋 Ask questions!

open.gent/r/semantics-repo

Hands-On

1. 🌦 HTTP Fetch → Log contents
2. 🔄️ Weather API → RDF → Log
3. 🧩️ Weather API → RDF → Validation → Log
4. 🚀️ Weather API → RDF → Validation → Publish → Log
5. 🤖 Implement your own ML processor in Python
6. ✅ Weather API → RDF → Translation → Validation → Publish → Log

Follow allong in the GitHub repository.
All tasks are in the README. Each branch is a solution to a task!
open.gent/r/semantics-repo

Implement a processor

1. Define the processor and its SHACL shape in processor.ttl
2. Implement the processor class
   • Extend the abstract class
   • Implement the init, transform, and produce methods
   • Use Readers & Writers to handle messages
3. Publish the processor
4. Use the processor in a pipeline

Define the processor in processor.ttl

@prefix rdfc: <https://w3id.org/rdf-connect#>.
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#>.


Define the processor in processor.ttl


@prefix rdfc: <https://w3id.org/rdf-connect#>.
@prefix sh: <http://www.w3.org/ns/shacl#>.
@prefix xsd: <http://www.w3.org/2001/XMLSchema#>.



Implement the processor class

Start from a processor template repository

TypeScript
https://github.com/rdf-connect/template-processor-ts

Python
https://github.com/rdf-connect/template-processor-py

Java
https://github.com/rdf-connect/template-processor-jvm

Implement a Python processor

1. In the transform method: consume the reader channel
2. Parse the input using rdflib
3. Identify language-tagged literals with @de
4. Translate them to English using a ML model
5. Emit both original and translated triples to the writer channel
6. Define the processor in processor.ttl

Add the Python runner

Set up the pyproject.toml for your pipeline

Add the Python runner

Install the runner:

uv add rdfc_runner


Import definition via owl:imports

<> owl:imports <./.venv/lib/python3.13/site-packages/rdfc_runner/index.ttl>.


Attach it to the pipeline declaration

<> a rdfc:Pipeline;
   rdfc:consistsOf [...], [
       rdfc:instantiates rdfc:PyRunner;
       rdfc:processor <translator>
   ].


Add your translation processor

Install your local processor after hatch build

uv add ../processor/dist/rdfc_translation_processor.tar.gz


Import definition via owl:imports

<> owl:imports <./.venv/lib/python3.13/site-packages/rdfc_translation_processor/processor.ttl>.


Define the channel

<translated> a rdfc:Reader, rdfc:Writer.


Define the processor instantiation

<translator> a rdfc:TranslationProcessor;
    rdfc:reader <rdf>;
    rdfc:writer <translated>;
    ... .


Hands-On: Processor

5. 🤖 Implement your own ML processor in Python
6. ✅ Weather API → RDF → Translation → Validation → Publish → Log

Follow allong in the GitHub repository.
All tasks are in the README. Each branch is a solution to a task!
open.gent/r/semantics-repo

Pipeline design: Weather KG With ML

Now try it yourself!

🛠️ Follow Part 2 in the repo (Task 5 - 7)

🙋 Ask questions!

open.gent/r/semantics-repo

Building Streaming and Cross-Environment Data Processing
Pipelines with RDF-Connect

Thank you!

We sincerely hope you enjoyed this tutorial
and found it valuable.

w3id.org/rdf-connect
